Product Description
The World's First Mini Soft Serve Vending Machine!!
SIMPLE OPERATION

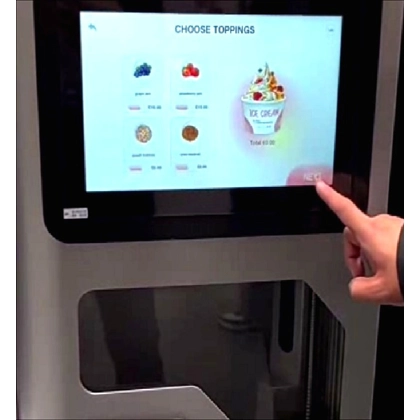

Just tap the screen and the machine will automatically complete the entire ice cream making process.
No need for dedicated training or supervision to save time and labor costs. It's simple, convenient and fast.
Built-in one-touch cleaning and fault detection.
DATA MONITORING AND REMOTE CONTROL
Real-time monitoring of ingredients consumption datas, machine status, and sales datas.
Remotely operate the machine to make ice cream, modify and set related parameters through the mobile phone app such as selling price and operating parameters.
INTEGRATED PAYMENT SYSTEM
The machine supports code scanning and card payment. Don't need to install payment devices and maximize space utilization.
VISIBLE WINDOW DESIGN AND DIY FLAVORS
The machine uses a visual window, which can let customers learn the production process of ice cream and give a great sense of participation.
One kind of ice cream ingredient, two kinds of small toppings and two kinds of jam to DIY with more than 10 kinds of flavors.
STATUS ALERT
The machine comes with ingredients shortage reminder to ensure the normal operation of the machine.
Real-time reminder of ingredients status to ensure ingrediens are in the best condition.
The machine has remote fault alert function.
Technical Details
Mini Vending Soft Ice Cream Machine
Intelligent Fully Automatic
Size: L560mm*W826mm*H812mm
Floor area: 0.46㎡
Weight: 230kg
Screen Size: 13.3 inch
Flavor: Full Vending Soft Ice Cream with 1Mix flavors
2 x Topping and 2 x Dry, Nuts, Chocolate, etc.
Time of Making: No less than 25 seconds
Number of containable: Cups 32
Material of Cup: Paper cup/customized paper plastic cup
Capacity Hopper: 10L
Freezing Cylinder: 2 liters
Rated Voltage/Frequency/Power:
220V 50HZ/220V 60HZ 110V 60HZ(customizable)
Material of Food Container:
304 stainless steel, food grade pp, food grade silicone hose
Main Strucure: International metal plate custom processing
Compressor: Aspera/Embraco compressor
Worm Reducer/Worm and worm wheel
Pump High expansion rate suitable for ice cream machines
Servo motor: 8A
Certification: CE
Refrigerant: R290a
Switching Power
Leakage protection switch
Sensor: International brand OMRON
LCD: Listed company BOE
Switching Power Supply Brand
First-line brand Taiwan Mean Well
Power Cable: 2.5 square x 3 core power cable
First Forming Time: No less than 15 min
Communication Interface1
RS232/ MDB/ 485 communication
Master Control: 2 core ARM new A17 core chip
Android 7.1 system
Noise Level: 80 DB
This machine is a groundbreaking innovation on a global scale.
OEM, and Special Requirements Available.
Please do not hesitate to Contact Us.
